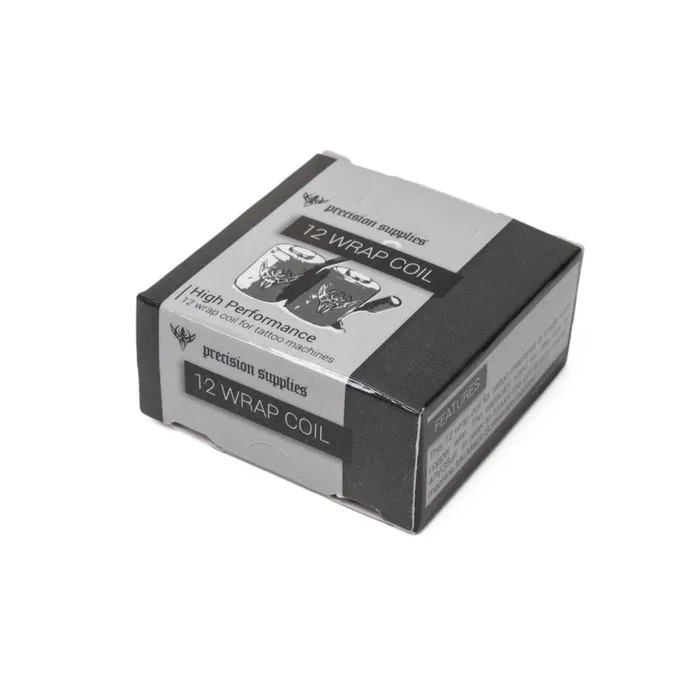

High Performance 12 Wrap Coil for Tattoo Machines
This 12 Wrap Coil for tattoo machines is made with copper wire. The capacitor used for this coil is 47V-35uF. The dimensions of the coils are listed under the specifications below. In order to mount this coil to your tattoo machine, M4 Metric Screws are required (M4 refers to the diameter of the threading (4mm) and the distance of each thread is 0.7mm).
Specifications:
- Total Height of Coil: 32mm
- Height of Wrap Portion: 28.5mm
- Width of Each Coil: 21mm
- Total Width: 43mm
- Iron Caps Width: 9.5mm
- Capacitor Size: 47V-35uF
- Material: Copper Wire
- Diameter of Internal Threading: 4mm
- Thread Length: 0.7mm
- Screws Required: M4 Metric Screws (Not Included with 12 Wrap Coil)
